Application:Self-balancing Electric Scooters, Electric Scooters
Item Number:BJ-XM-0140
Product Category:Electric Scooter
Model 1:Red Reinforced Folding Hook + 1 Pin
Model 2:Black Reinforced Folding Hook + 1 Pin
Model 3:Silver Reinforced Folding Hook + 1 Pin
Applicable Population:Adult
Weight:0.04KG
Basic Infomation
Place of Origin:China
Brand Name:BJ
Model Number:BJ-XM-0140
Payment & Shipping Terms
Gallery

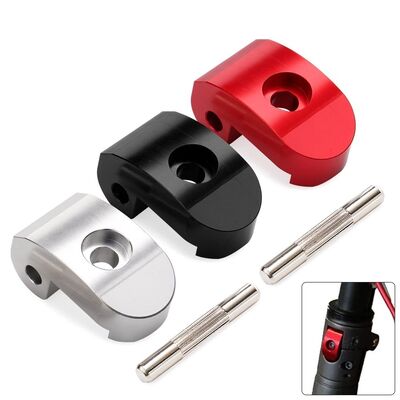

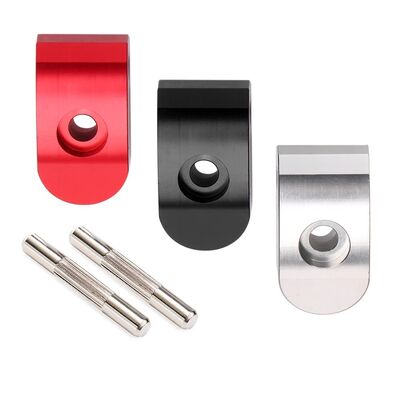

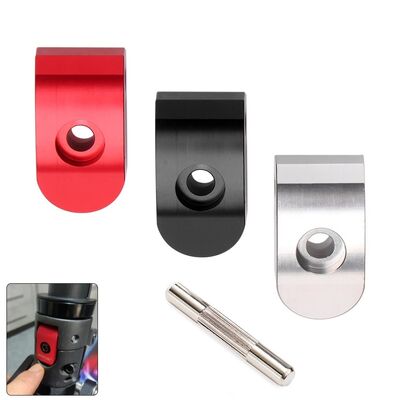

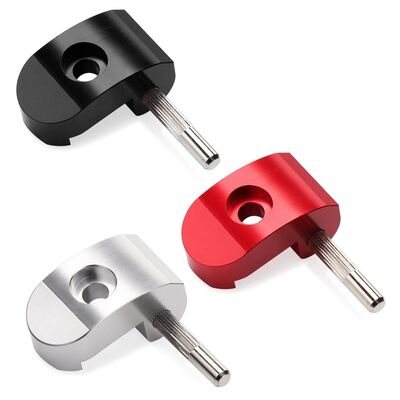

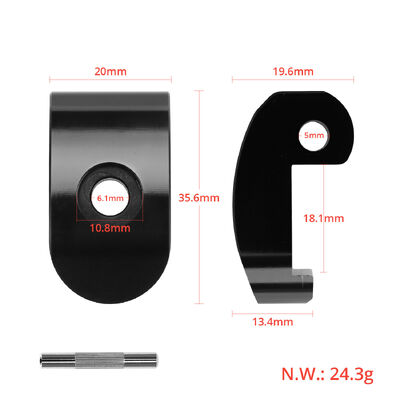

Electric Scooter Reinforced Folding Hook Is Suitable for M365 1S Pro Scooter With Hard and Thickened Folding Buckle Zipper
Product Description
High Density Alloy Steel Folding Hook for 1S M365 Pro Electric Scooter Hinge Bolt Lock Screw Parts
Material: Metal
Available colors: black, white, red (as shown in the picture)
Using high-density aviation aluminum, high hardness, not easy to bend and break
Beautiful appearance
Stronger than ordinary folding buckles.
Electroplating process, no fading
Features:
1. Reinforced Aluminum Replacement Lock Hinge Repair Lock for 1S M365 Pro
2. Unscrew the old lock and keep the screws safe, as you will be using the same screws as spare parts.
3. To drill the pin, you need to make sure to do it from the correct side. Make sure to do this from left to right (viewed from the front of the scooter, not from the steering wheel side). Put down the scooter and put something sturdy under the folding mechanism. Watch out for the cables! Push them away before each punch or you'll break them.
4. Apply lubricant, oil or WD40 to the spindle and leave it for a while. Some customers prefer to use hot air instead of slightly heating saliva.
5. Use the 4mm punch and hit it hard a few times. Pay attention to the cable again.
6. Take a new lock and replace it with the same screws.
7. Turn the scooter upside down because the pin needs to be inserted on the other side (right to left when viewed from the front of the scooter).
8. Be sure to follow the pin. Put the spindle inside and reapply the punching tool. He should be easy to get in. Hit it until it is aligned on both sides.
9. Re-adjust your shaft lock/bolt to ensure the new lock is properly bent. Don't over-tighten it, but don't let it get too loose either (as long as there is enough resistance and there is no clearance in the rod/hinge).
